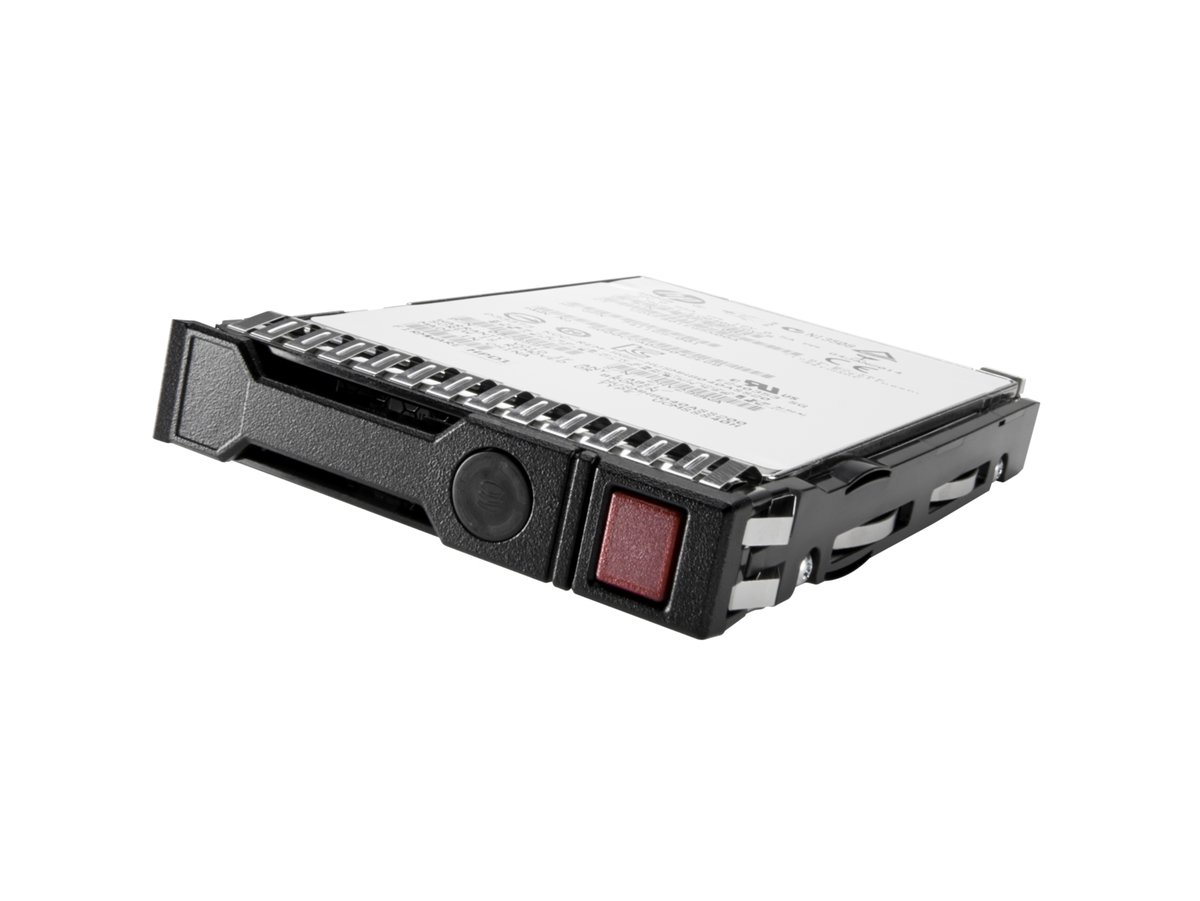

HPE Midline – hard drive – 1 TB – SAS 12Gb/s

HPE Midline – Hard drive – 1 TB – hot-swap – 2.5″ SFF – SAS 12Gb/s – 7200 rpm – with HP SmartDrive carrier

Dimensions & Weight / Depth: 118.7 mm

Dimensions & Weight / Height: 15.6 mm

Dimensions & Weight / Width: 75.7 mm

Hard Drive / Interface: Serial Attached SCSI 3

Hard Drive / Capacity: 1 TB

Hard Drive / Interface: Serial Attached SCSI 3

Header / Brand: HPE

Miscellaneous / Product Color: Black

Packaged Quantity: 1

Service & Support / Type: 1-year warranty

Hard Drive / Form Factor: 2.5″ SFF

Hard Drive / Hard Drive Type: Hot-swap hard drive

Storage / Type: Hard drive

General

Device Type: Hard drive – hot-swap

Capacity: 1 TB

Form Factor: 2.5″ SFF

Interface: SAS 12Gb/s

Bytes per Sector: 512

Width: 75.7 mm

Depth: 118.7 mm

Height: 15.6 mm

Bundled with: HP SmartDrive carrier

Performance

Drive Transfer Rate: 1.2 GBps (external)

Seek Time: 6.8 ms (average) / 17 ms (max)

Track-to-Track Seek Time: 0.5 ms

Spindle Speed: 7200 rpm

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s

Compatible Bay: 2.5″ SFF

Manufacturer Warranty

Service & Support: Limited warranty – 1 year

Environmental Parameters

Min Operating Temperature: 10 °C

Max Operating Temperature: 35 °C

Compatibility Information

Designed For:

• HPE ProLiant BL460c Gen10 (2.5″), DL20 Gen10 (2.5″), DL20 Gen10 Entry (2.5″), DL20 Gen10 Performance (2.5″), DL20 Gen10 solution (2.5″), DL20 Gen9 (2.5″), DL20 Gen9 Entry (2.5″), DL20 Gen9 Performance (2.5″), DL20 Gen9 Solution (2.5″), DL360 Gen10 (2.5″), DL360 Gen10 Base (2.5″), DL360 Gen10 Entry (2.5″), DL360 Gen10 High Performance (2.5″), DL360 Gen10 Low (2.5″), DL360 Gen10 Performance (2.5″), DL360 Gen10 Solution (2.5″), DL380 Gen10 (2.5″), DL380 Gen10 Base (2.5″), DL380 Gen10 Entry (2.5″), DL380 Gen10 High Performance (2.5″), DL380 Gen10 Performance (2.5″), DL380 Gen10 Solution (2.5″), DL385 Gen10 (2.5″), DL385 Gen10 Base (2.5″), DL385 Gen10 Entry (2.5″), DL385 Gen10 High-Performance (2.5″), DL385 Gen10 Performance (2.5″), DL385 Gen10 Solution (2.5″), DL388 Gen9 Base (2.5″), DL560 Gen10 (2.5″), DL560 Gen10 Base (2.5″), DL560 Gen10 Entry (2.5″), DL560 Gen10 Performance (2.5″), DL580 Gen10 (2.5″), DL580 Gen10 Base (2.5″), DL580 Gen10 Entry (2.5″), DL580 Gen10 Performance (2.5″), DL580 Gen9 Database (2.5″), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5″), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5″), ML110 Gen10 (2.5″), ML110 Gen10 Performance (2.5″), ML110 Gen10 Solution (2.5″), ML30 Gen10 (2.5″), ML30 Gen10 Entry (2.5″), ML30 Gen10 Performance (2.5″), ML30 Gen10 Solution (2.5″), ML30 Gen9 Entry (2.5″), ML30 Gen9 Solution (2.5″), ML350 Gen10 (2.5″), ML350 Gen10 Base (2.5″), ML350 Gen10 Entry (2.5″), ML350 Gen10 Performance (2.5″), ML350 Gen10 Solution (2.5″), ML350 Gen10 Sub-Entry (2.5″), XL190r Gen10 (2.5″), XL230k Gen10 Compute Tray (2.5″), XL270d Gen10 (2.5″), XL270d Gen9 (2.5″), XL450 Gen10 (2.5″)

• HPE Synergy 480 Gen10 Base Compute Module (2.5″), 480 Gen10 Entry Compute Module (2.5″), 480 Gen10 Performance Compute Module (2.5″), 480 Gen10 Premium Backplane Compute Module (2.5″), 480 Gen10 Standard BackPlane Compute Module (2.5″), 480 Gen10 w/o Drives Compute Module (2.5″)
